A knife forge isn't just a tool; it's the heart of the knifemaking process. It's where raw materials are transformed into the beginnings of a blade. The forge's primary purpose is to heat metal to temperatures high enough to make it malleable, allowing the blacksmith to shape it through hammering, bending, and other techniques. The type of forge used can vary widely depending on the scale of the operation, the type of metal being worked, and the blacksmith's personal preference. Common types include coal forges, gas forges, and induction forges.
- Coal Forges: These are traditional forges that use coal as fuel. They can reach very high temperatures and are excellent for welding and working with thicker materials. However, they require more skill to operate and can be messier due to the smoke and ash produced.
- Gas Forges: These forges use propane or natural gas as fuel. They are cleaner and easier to control than coal forges, making them a popular choice for many modern blacksmiths. They heat up quickly and maintain a consistent temperature.
- Induction Forges: These are the most modern type of forge, using electromagnetic induction to heat the metal directly. They are very efficient and provide precise temperature control, but they are also the most expensive.
Constructing your own knife forge can be a rewarding project. A simple, yet effective mini-forge can be built using fire bricks, a propane torch, and some basic hardware. Here's a more detailed breakdown of the process:
1. Acquire Fire Bricks: Fire bricks are essential due to their ability to withstand extremely high temperatures without cracking or breaking down. You'll need at least two.
2. Prepare the Fire Chamber: Cut one of the fire bricks in half if it is too large. The ideal chamber size depends on the size of the blades you intend to forge. Drill a two-inch diameter hole through the middle of one half. This hole will serve as the fire chamber where the metal will be heated.
3. Create the Torch Port: Drill a smaller (5/16th inch) hole from one side of the brick, connecting it to the larger hole. This smaller hole will be the port for your propane torch, allowing you to direct the flame into the fire chamber.
4. Base Support: The other half of the fire brick remains solid to act as a base.
5. Assemble the Forge: Cut aluminum angles into four, six-inch sections. Drill 5/16th inch holes on each end of the aluminum angles. Use bolts, washers, and nuts to secure the aluminum angles to piece together the two halves of the fire brick. This creates a sturdy frame around the fire bricks, holding them in place. Ensure the small side hole for the torch remains unobstructed.
Alternative Construction Method:
Another method involves using two whole fire bricks. Using tools like a hacksaw, flat-head screwdriver, and rasp, carefully create a hole in one of the bricks. You can also use furnace cement to adhere the two halves together for added stability.
Torch Placement:
Use a drill bit matching the diameter of the propane torch nozzle to drill an angled hole about 1 inch from the front of the forge mouth. This angled placement allows the torch to direct the flame efficiently into the fire chamber, maximizing heat retention.
When building and using a forge, safety is paramount. Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and a respirator. Ensure your workspace is well-ventilated to avoid inhaling harmful fumes. Keep a fire extinguisher nearby and be aware of potential fire hazards.
The gauge of steel is a critical factor in determining its suitability for various applications, including knifemaking. The gauge indicates the thickness of the steel; a larger gauge number signifies a thinner steel. This can be confusing, as it's the opposite of what one might intuitively expect.
| Gauge Number | Fractional Approximation | Sheet Steel Standard (inches) | Common Applications |
|---|---|---|---|
| 3 | 1/4 | 0.2391 | Heavy-duty structural components, thick plates, and machine parts |
| 10 | 9/64 | 0.1345 | Automotive body panels, appliance housings |
| 16 | 1/16 | 0.0598 | Enclosures, light structural supports |
| 22 | 1/32 | 0.0299 | Ductwork, thin panels, and non-structural components |
| 28 | 1/64 | 0.0149 | Very thin sheets used in applications where weight is a primary concern |
For knife forges, the gauge of the steel is less relevant than the material used to construct the forge itself. The forge's structure is typically made of fire bricks or a similar refractory material, not steel sheets. However, if you were constructing a metal enclosure around the forge for insulation or protection, the gauge of the steel would become important. In such cases, a thicker gauge (e.g., 10-16 gauge) would be preferable for its durability and heat resistance.
The steel used for the knife blade is arguably the most critical factor in determining the knife's overall quality and performance. The type of steel, its heat treatment, and its overall composition all contribute to the blade's strength, edge retention, and resistance to corrosion.
- Carbon Steel: This is a popular choice for knives due to its ability to take and hold a sharp edge. It's also relatively easy to sharpen. However, carbon steel is prone to rust and requires careful maintenance. Common examples include 1095 and O1 tool steel.
- Stainless Steel: Stainless steel is known for its corrosion resistance, making it a low-maintenance option. While it may not hold an edge as well as carbon steel, modern stainless steels have made significant improvements in edge retention. Common examples include 440C, AUS-8, and VG-10.
- Tool Steel: Tool steels are high-carbon steels alloyed with other elements to enhance their toughness, wear resistance, and heat resistance. They are often used for high-performance knives. Examples include D2, A2, and CPM-M4.

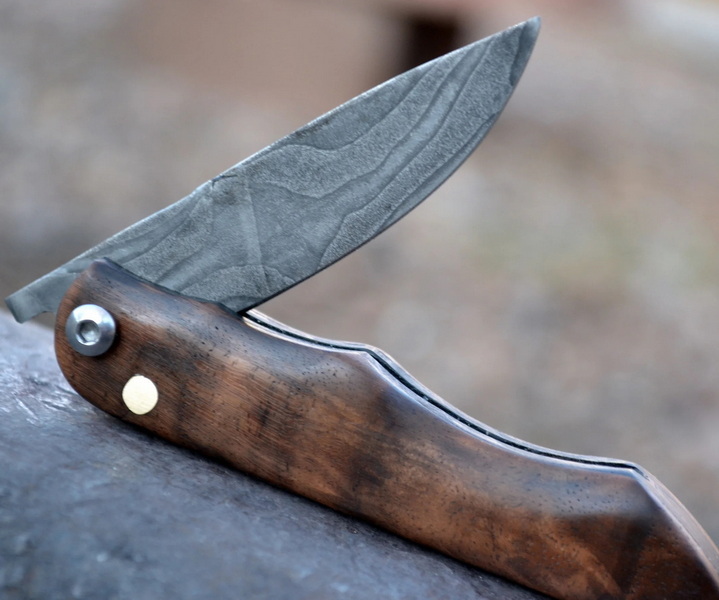

- Damascus Steel: Also known as pattern-welded steel, Damascus steel is created by forge welding multiple layers of different steels together. This creates a unique and visually appealing pattern in the blade.
- Hardness: Measured on the Rockwell scale (HRC), hardness indicates the steel's ability to resist deformation and wear. Higher hardness generally means better edge retention, but it can also make the blade more brittle.
- Toughness: Toughness refers to the steel's ability to absorb impact without chipping or breaking. A tough steel can withstand more abuse without failing.
- Wear Resistance: Wear resistance is the steel's ability to resist abrasion and erosion. Steels with high wear resistance will maintain their edge sharpness for longer.
- Corrosion Resistance: Corrosion resistance is the steel's ability to resist rust and other forms of corrosion. Stainless steels are known for their excellent corrosion resistance.
Heat treatment is a crucial step in the knifemaking process. It involves heating the steel to a specific temperature and then cooling it in a controlled manner. This process alters the steel's microstructure, improving its hardness, toughness, and other properties. Proper heat treatment is essential for achieving optimal performance from the knife steel.
Understanding the principles behind knife forges, steel gauges, and knife steel is fundamental for anyone interested in knifemaking. Whether you're building your own forge or selecting the right steel for your blade, knowledge of these concepts will help you create high-quality, durable, and effective knives. Safety should always be a priority when working with forges and sharp tools.
Pattern welding is a technique used to create decorative patterns in metal[1]. It involves forge welding multiple layers of steel together[5]. The video discusses forging a pattern-welded knife from tool steel rods[1].
O1 tool steel is a type of steel often used for making knives[1]. It requires careful temperature control during forging[1].
Rockwell hardness is a scale used to measure the hardness of knife steels[3]. It indicates the blade's ability to resist deformation under stress[3].
A hidden tang knife is a knife where the tang (the part of the blade that extends into the handle) is not visible[1]. The tang is hidden within the handle material[1].
Forge welding is a process where two pieces of metal are heated and then joined together by hammering[1][5]. Flux is often used to ensure a clean weld[1].
