Creating a handle for a forged knife is an essential skill for any bladesmith or knife enthusiast. A well-crafted handle not only enhances the knife's aesthetic appeal but also significantly improves its functionality and comfort during use. This comprehensive guide will walk you through the entire process of putting a handle on a forged knife, from selecting materials to finishing touches.
Before starting, gather the following tools and materials:
- Wood rasp: For shaping the handle.
- Half round file: To refine the shape.
- Small files: For detailed work.
- Clamps: To hold the handle scales in place while the glue dries.
- Sandpaper (60-400 grit): For smoothing the handle.
- Scroll saw: For cutting handle scales.
- Drill with bits: For creating holes in the scales.
- Vise: To secure your knife while working.
- Wood: Choose a durable wood type like lacewood, desert ironwood, or any hardwood of your choice. Exotic woods can add unique character to your knife.
- Glue or epoxy: Ensure strong adhesion between the scales and tang. Two-part epoxy is often preferred for its strength and durability.
- Finish: Options include Danish oil, polyurethane, or any wood finish that enhances appearance and durability.
Start by cleaning the tang of your blade. Sand it down to bare steel to ensure that the glue adheres well. Use acetone to remove any debris or oils that may interfere with adhesion. This step is crucial as any residue can weaken the bond between the wood and metal.

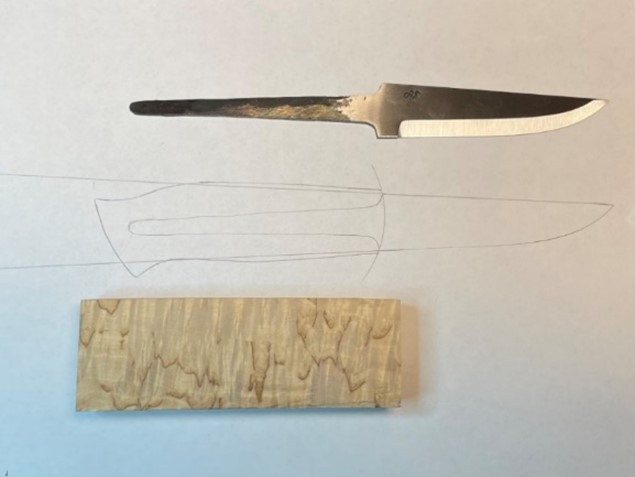

Trace and cut out your handle scales from the wood. Ensure that the grain runs lengthwise along the handle for both strength and aesthetics. It's better to cut them slightly oversized than too small. Use a scroll saw for intricate cuts, ensuring clean edges that will fit snugly against the tang.
Mark where the holes for the tang will be drilled on each scale. Drill holes at an angle for better fit, ensuring they align perfectly with the tang of your knife. Use a drill press if available, as it provides more control and precision than a handheld drill.
Apply glue generously to both sides of the tang and press on the scales. Use clamps to hold them tightly in place. It's crucial to allow the glue to cure fully—ideally overnight—to ensure a strong bond. Be cautious about excess glue squeezing out; clean it up immediately with a damp cloth.
With your knife secured in a vise, begin shaping the handle using a wood rasp. Take your time; remember, you can always remove more material, but you can't add it back once it's gone. Aim for a comfortable grip that fits well in your hand. Consider ergonomics—your handle should feel natural during use, allowing for extended periods without fatigue.
When shaping your handle, consider different profiles:
- Contoured Handles: These are shaped to fit comfortably in your hand, reducing fatigue during prolonged use.
- Flat Handles: These provide a more traditional look but may not be as comfortable for extended use.
- Tapered Ends: Tapering can help with grip and control.
Once you have a rough shape, switch to sandpaper. Start with lower grit (60) and work your way up to finer grits (400). Test the grip frequently during this process to ensure it feels comfortable. Sanding not only smooths out rough edges but also prepares the wood for finishing.
- Use circular motions for even sanding.
- Pay attention to corners and curves; these areas often need more detailed work.
- Always sand in line with the grain to avoid scratches.
After sanding, apply your chosen finish to protect and enhance the wood's natural beauty. Danish oil is popular because it penetrates well and provides a warm glow while protecting against moisture. Polyurethane offers excellent durability but may require multiple coats and sanding between applications.
1. Clean Surface: Ensure there's no dust or debris before applying finish.
2. Apply Evenly: Use a clean cloth or brush to apply an even coat.
3. Drying Time: Allow sufficient drying time between coats as per manufacturer instructions.
For added strength and aesthetic appeal, consider adding pins or rivets through your handle scales into the tang. This technique not only secures your scales further but can also serve as decorative elements.
1. Drill Holes: Before gluing, drill small holes through both scales and into the tang.
2. Insert Pins/Rivets: After gluing, insert pins made of brass or stainless steel into these holes before clamping.
3. Trim Excess: Once dried, trim any excess pin material flush with the surface of your scales.
For enhanced grip, you might want to texture parts of your handle:
- Use specialized tools like rotary tools with sanding drums or engraving bits to create patterns.
- Experiment with different textures such as checkering or stippling.
While working on knife handles, safety should always be paramount:
- Wear safety goggles when cutting or sanding wood.
- Use gloves when handling adhesives and finishes.
- Keep your workspace organized to prevent accidents.
Putting a handle on a forged knife is a rewarding process that combines artistry with functionality. By following these steps carefully, you can create a beautiful and practical knife handle that complements your blade perfectly. With practice, you'll develop your own techniques and styles, making each knife unique to its owner.
Hardwoods like maple, walnut, and desert ironwood are excellent choices due to their durability and aesthetic appeal. Exotic woods like cocobolo or rosewood offer unique colors and grain patterns but may require more care in maintenance.
Shape your handle according to how it feels in your hand during use; frequent testing will help achieve this. Consider different grips based on intended use—whether it's for slicing, chopping, or detailed work.
Epoxy is often recommended for its strong bond; however, wood glues can also be effective if used correctly. Ensure that whatever adhesive you choose is suitable for both wood and metal applications.
Allowing glue to cure overnight is ideal for ensuring maximum strength before shaping or using your knife. Always refer to manufacturer instructions for specific curing times based on temperature and humidity conditions.
Yes, existing handles can be reshaped or replaced entirely if done carefully, ensuring proper fit and finish. If replacing an existing handle, take care not to damage the blade tang during removal.
